Name: Customizable Gaming Infrared Multi 10 point Touch Screen With 3MELO Protocol Compatibility
Brand: Anwell Touch
Price: 1 USD

Brand Name : Anwell Touch

Model Number : AW430IB-G001

Certification : CE,Rohs,FCC

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiable

Payment Terms : TT

Supply Ability : 5000 pieces per Month

Delivery Time : 8-15 working days

Packaging Details : Standard carton box

Color : Black

Colors : 16.7million

Aspect Ratio : 16:9

Touch Screen Type : IR touch

Touch signal input : RS232

Viewing Angle : 178/178 (H/V)

Function : Work on Gaming POG，firelink

Resolution : 1920 x 1080

Contact Now

Product Specification

Name: Open Frame 43inch Infrared Touch screen Monitor

Model: AW430IB-G001

Product Picture:

Customizable Gaming Infrared Multi 10 point Touch Screen With 3M/ELO Protocol Compatibility

Product Paramenters:

Anwell Model	AW430IB-G001
Monitor Color	Black
Aspect Ratio	16:10
Resolution	1920 x 1080
Colors	16.7 M
Active Area	940.896(W)×529.254(H) mm
Number of Touches	1 points_Touch Infrared Touch Screen
Brightness	300cd/㎡
Response Time	5 ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio	1200:1
Backlight Lifetime (hours)	LED / 50,000h

Touch Technology	1 points Infrared Touch
Touch Connector	RS232
Touch Panel Drivers	Compatible with 3M/ELO protocol
Touch Response Time	＜5ms

Power Supply	Input AC110 ~ 240V
Output	AC110 ~ 240V
Interface	VGA,HDMI,RS232
Power consumption	≤45W

Temperature	Operating 0℃~60℃/Storage‐ 20℃~60℃
Humidity Range (RH)	Operating 20%RH~80%RH/Storage10%RH~90%RH
Housing material	Metal
Installation	400x200mm mount
Warranty(year)	1 Year
Support customization

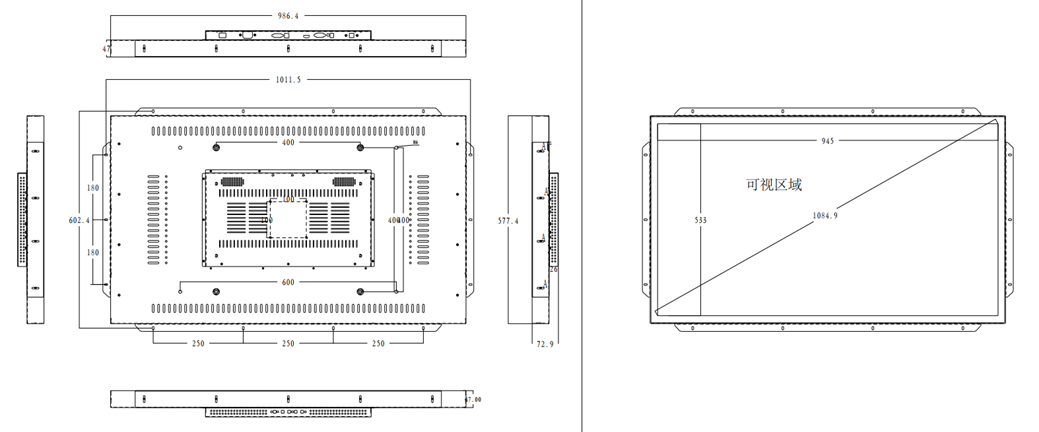

Structural dimension diagram:
